RELAY
TIANBO RELAY
총 34개의 상품이 있습니다.
- 갤러리형
- 리스트형
| No. | Image | Product Name | Outline LxWxH(mm) | Contact Form | Contact Ratings[A] | Approved Standards | |
|---|---|---|---|---|---|---|---|
| 34 |  |
HJQ-22F4 | 28.0 x 21.5 x 35.0 | 4Z | 5A 240VAC / 5A 28VDC | UL, cUL, CQC |  |
| 33 |  |
HJQ-22F(2, 3) | 28.0 x 21.5 x 35.0 | 2Z/3Z | 5A / 7A 240VAC / 5A 28VDC / 7A 30VDC | UL, cUL, CQC | |
| 32 |  |
HJQ-13F-2Z | 28.0 x 21.5 x 35.0 | 2Z | 10A250VAC / 30VDC | UL, cUL, TUV, CQC | |
| 31 |  |
HJQ-13F-1Z | 28.0 x 21.5 x 35.0 | 1Z/1H/1D | 16A250VAC/30VDC | UL, cUL, TUV, CQC | |
| 30 |  |
TRA2FH | 29..0 x 12.5 x 23.3 | 1H | 20A250VAC | UL, cUL, TUV, CQC | |
| 29 |  |

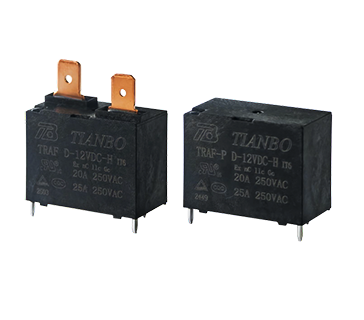

TRAF | 30.1 x 12.0 x 26.2 | 1H /1A | 20A250VAC / 25A250VAC | UL, cUL, TUV, CQC | |
| 28 |  |
TRGB | 20.5 x 7.2 x 15.1 | 1H/1A (방폭형) | 5A 250VAC / 5A 28VDC | UL, cUL, TUV, CQC | |
| 27 |  |
TRG2 | 20.6 x 10.2 x 15.8 | 1H/1Z | 10A 120VAC / 5A 240VAC / 5A30VDC | UL, cUL, TUV, CQC | |
| 26 |  |
TRC3 | 29.3 x 12.7 x 15.7 | 2H/2Z | 8A250VAC | UL, cUL, TUV, CQC | |
| 25 |  |

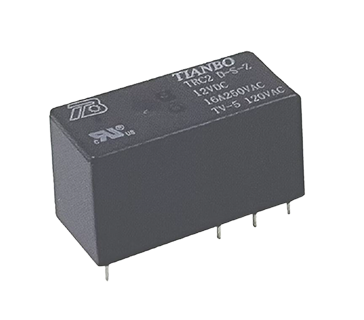

TRC2 | 29.3 x 12.7 x 15.7 | 1H/1Z | 16A250VAC / TV-5A@125VAC | UL, cUL, TUV, CQC | |
| 24 |  |
TRC1 | 29.3 x 12.7 x 15.7 | 1H/1Z | 12A250VAC | UL, cUL, TUV, CQC | |
| 23 |  |

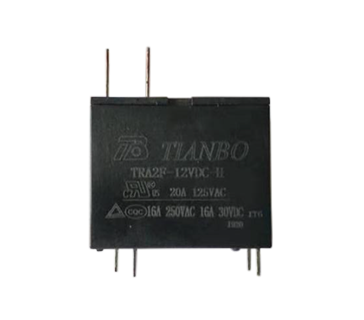

TRA2F | 29.0 x 12.6 x 24.8 | 1H /1A | 16A250VAC/ 20A125VAC/ 16A30VDC | UL, cUL, TUV, CQC | |
| 22 |  |
HJQ-15FT | 32.0 x 27.4 x 19.3 | 1H/1D/1Z | NC:30A277VAC,NO:40A277VAC | UL, cUL, TUV, CQC | |
| 21 |  |
HJQ-15F-2T | 32.0 x 27.4 x 19.3 | 1H/1D/1Z | NC:30A277VAC,NO:40A277VAC | UL, cUL, TUV, CQC | |
| 20 |  |
HJQ-15F-1T | 32.0 x 27.4 x 28.1 | 1H/1D/1Z | NC:30A277VAC,NO:40A277VAC | UL, cUL, TUV, CQC | |
| 19 |  |
HJQ-15F-2 | 32.0 x 27.4 x 19.3 | 1H/1D/1Z | 1H:25A(30A)240VAC/20A28VDC 1D:15A240VAC/10A28VDC 1Z:20A/10A240VAC/28VDC | UL, cUL, TUV, CQC | |
| 18 |  |
HJQ-15F-1 | 32.0 x 27.4 x 19.3 | 1H/1D/1Z | 1H:25A(30A)240VAC/20A28VDC 1D:15A240VAC/10A28VDC 1Z:20A/10A240VAC/28VDC | UL, cUL, TUV, CQC | |
| 17 |  |
HJQ-15F | 32.0 x 27.4 x 19.3 | 1H/1D/1Z | 1H:25A(30A)240VAC/20A28VDC 1D:15A240VAC/10A28VDC 1Z:20A/10A240VAC/28VDC | UL, cUL, TUV, CQC | |
| 16 |  |

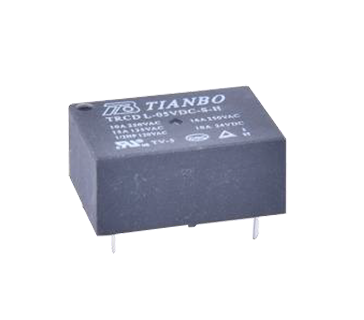

TRCD | 23 × 16.1 ×10.2 | 1H /1A | 16A 250VAC(TUV,CQC) 10A 250VAC/24VDC 1/2HP 125VAC TV-5A@125VAC(LAMP) 10A125VAC(Tungsten | TÜV, UL/cUL, CQC | |
| 15 |  |

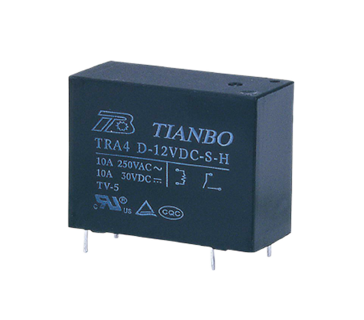

TRA4 | 24.5 x 10.5 x 25.0 | 1H /1A | 10A250VAC/30VDC TV-5(5A@120VAC) | UL, cUL, TUV, CQC | |
